RICOH SC-20 Compatible Lenses/Option
RICOH SC-20 Compatible Lenses

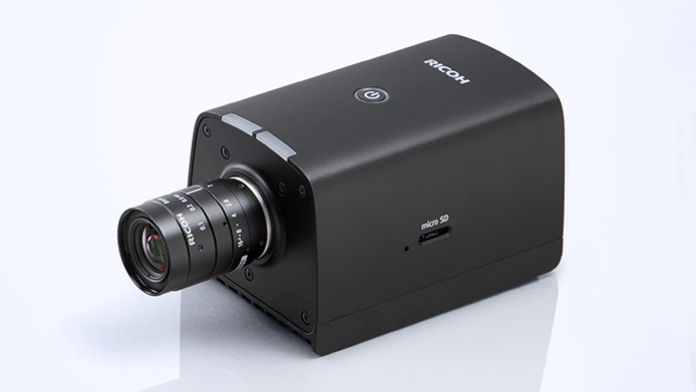

Compatible with C-mount FA lenses and a wide variety of workpiece sizes and working distances
The camera uses an interchangeable C mount lens. 5 high-resolution, RICOH FA lenses that offer minimal distortion are available. Select from 5 focal lengths to match the size of your workpiece.
Adjusting the lens aperture enables simultaneous inspections of objects with height differences.
With a RICOH C mount FA lens, the focus and aperture can be easily adjusted with the ring. The focus and aperture rings can be locked with a screw for secure setting. Stopping down the aperture creates a deeper depth of field, and objects with height differences can be simultaneously inspected by locking the focus ring.
Automatic imaging range checking reference tool by lens
The imaging range of each lens is calculated using the working distance. Enter a value in the working distance and click the "Display Results" button.
* The minimum working distance is 100 mm.
| lens | Horizontal (H) | Vertical (V) |
|---|---|---|
| FL-CC0820-5MX |
|
|
| FL-CC1218-5MX |
|
|
| FL-CC1618-5MX |
|
|
| FL-CC2518-5MX |
|
|
| FL-CC3524-5MX |
|
|
* Units are in mm.
Genuine option
External I/O cable (5m) IOC-2005
External I/O cable (10m) IOC-2010

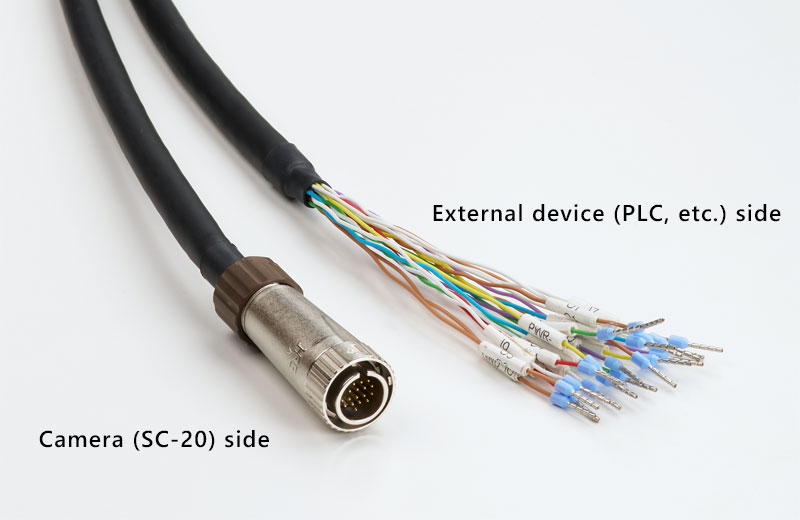

This connection cable can be used when SC-20 is used in conjunction with an external device.

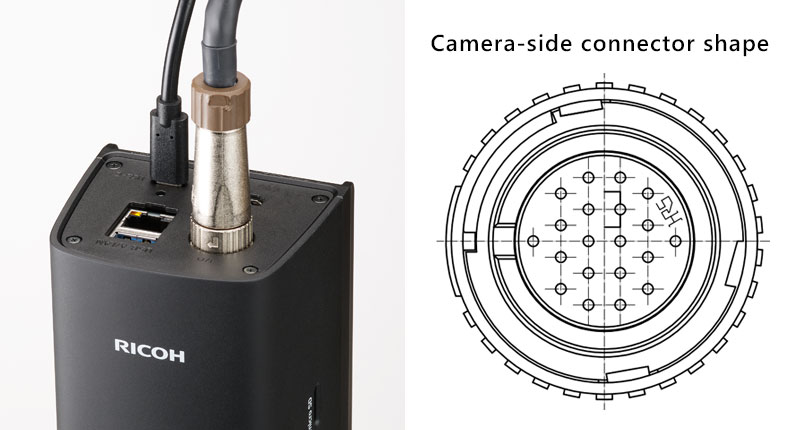

The terminals on the external device side are ferrule terminals with a conductor length of 8 mm.
Specifications
| IOC-2005 | IOC-2010 | ||
|---|---|---|---|
| External device (PLC, etc.) side terminal | Ferrule terminals AWG #26 compatible 20 conductors, 8mm long |
||
| Cable Dimension | Length | 5m | 10m |
| External diameter | 8.7mm | ||
