Option functions | Work Inspection Camera RICOH SC-20 | Cannot conduct exterior inspections. This camera is for manual work quality inspections.

"Additional Camera" function for multi-angle inspection NEW

In addition to the field of view that can be secured from a single viewpoint with the SC-20 camera, up to three viewpoints can be inspected by connecting 2 USB cameras.

* To activate the option function, a license file must be obtained and activated. Please contact the salesperson in charge of your company for information on obtaining and activating the license file.

Capable of inspecting large or three-dimensional objects
Previously, inspection was only possible from the field of view secured by the SC-20 main camera from a single viewpoint, but the USB camera connection now enables inspection from up to three viewpoints. Large or three-dimensional objects that previously could not be accommodated within the field of view of the main camera can now be inspected by combining images from multiple cameras.
Flexible camera layouts can also be used for inspections involving height differences in the area to be checked or for very detailed objects.

All you need is a commercially available USB camera and a license to start
Compatible with UVC-compliant USB cameras with Full HD or higher pixel count*. No additional hardware required. This option may be used by simply purchasing (activating) a license.

* Compatible with USB-connected cameras that support 1920x1080 (Full HD) resolution output and MJPEG (Motion JPEG) video format.

Click here for an example of the system configuration

* For details of Option Functions, please see the Operating Instructions Operating Instructions “Option Functions”

Easily read barcodes and text with "1D/2D Code" function and "OCR" function

An option function that enables data input and character recognition using the SC-20 itself instead of a barcode reader, dramatically improving work efficiency.

* To activate the option function, a license file must be obtained and activated. Please contact the salesperson in charge of your company for information on obtaining and activating the license file.

1D/2D Code Function

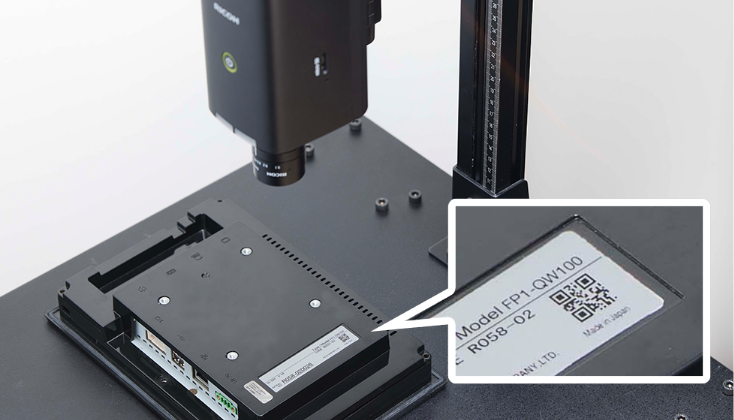

1D/2D code function allows the SC-20 camera to read barcodes and QR codes (1D and 2D codes) for data input.

This function can be used for the following purposes.

Input of [User ID] during login

Data input in inspection steps (data input mode) during the workflow

Input of [Job ID] and [Reference ID] during the execution of workflow

Note

The 1D/2D codes can be read even if rotated.

OCR Function

In the data input mode, the OCR function enables character information to be read by character recognition, making it possible to easily record product model names, serial numbers, etc. on the job log.

Note

Only single-byte upper-case alphabets and numbers can be read.

Rotated text cannot be read correctly.

Reading may not be performed correctly depending on the font and shape of letters.

Maximum reading area size is 1920 x 1080.

* For details of Option Functions, please see the Operating Instructions Operating Instructions “Option Functions”

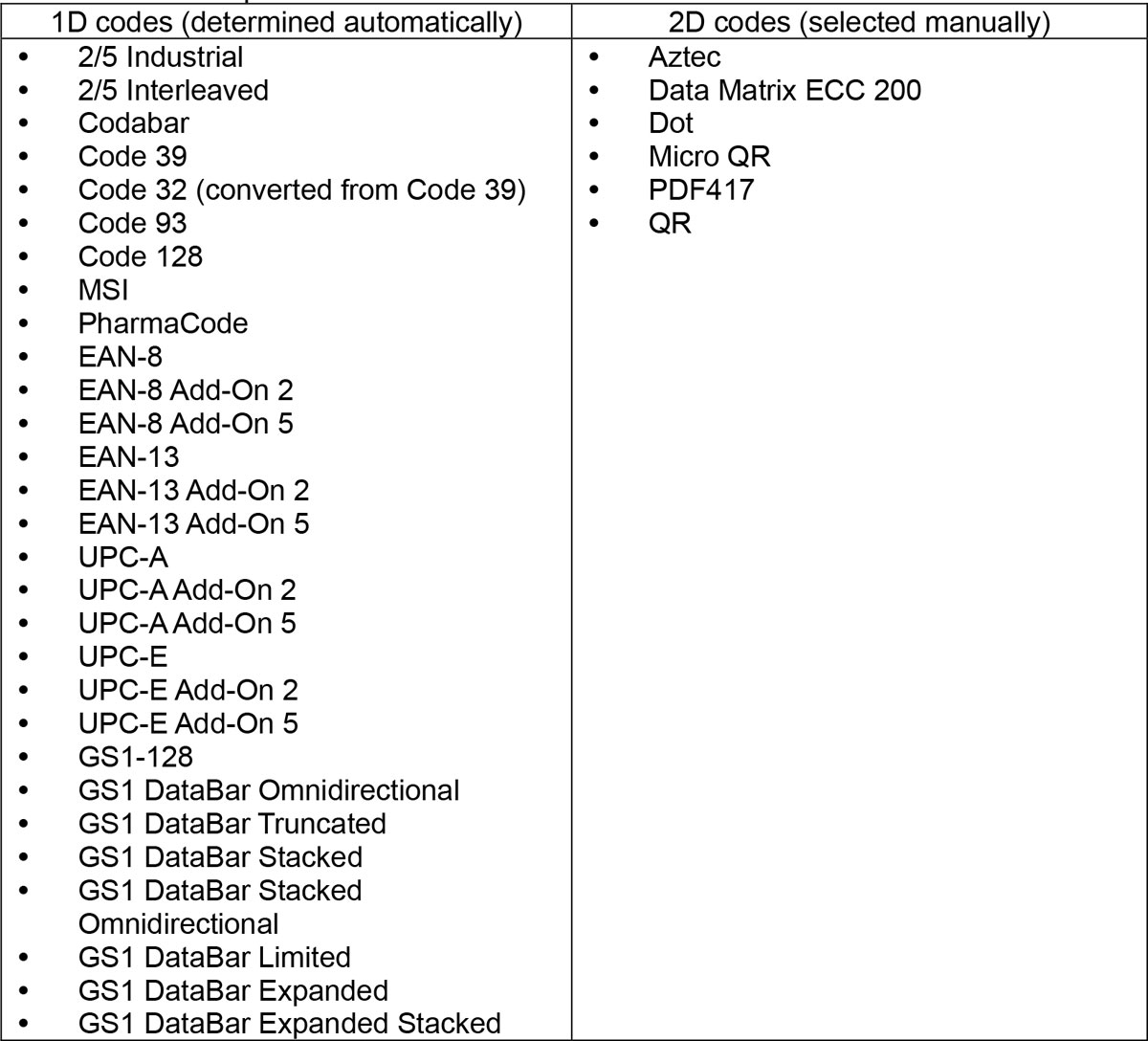

The 1D/2D codes that can be read are as described below.

The type of the 1D codes is determined automatically while reading. The 2D codes need to be specified.

Inquiry / Distributors Inquiry / Distributors

The 1D/2D codes that can be read are as described below. The type of the 1D codes is determined automatically while reading. The 2D codes need to be specified.
