| Lens area | Focal distance | 25mm |
|---|---|---|
| Aperture | Fixed(7.0 equivalent) | |
| Field angle | Approx. 29 degrees (horizontal), Approx. 22 degrees (vertical) | |
| Camera area | Number of measurement points | 120 x 90 |
| Exposure time | 2μ sec. to 64 sec. | |
| Measurement brightness range | 1cd/m2 to 10000cd/m2 | |
| Brightness linearity *1 | ± 5% (Operating temperature 25℃) | |
| Brightness repeatability characteristics *1 | ± 0.5% （2σ） | |
| Color precision *1 | ⊿x ± 0.01, ⊿y ± 0.01 (Operating temperature 25℃) | |
| Peripheral error in chromaticity *2 | ⊿x ± 0.005, ⊿y ± 0.005 | |
| Color repeatability characteristics *1 | ⊿x ± 0.003, ⊿y ± 0.003 | |
| Peripheral error in the color repeatability characteristics *2 | ⊿x ± 0.002, ⊿y ± 0.002 | |
| Temperature characteristic (Operation temperature range) |
Brightness: ± 5%, Chromaticity: ± 0.01 (Rates are base on the operating temperature 25℃) |
|

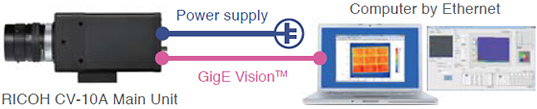

| Interface | GigE Vision™ | |
| Power source | 12VDC 2A | |
| Consumption power | 5.3W | |
| Usage conditions | Temperature: 0℃ to 40℃, Humidity: 85%RH or less (no condensation) | |
| Storage conditions | Temperature: -30℃ to 65℃, Humidity: 85%RH or less (no condensation) | |

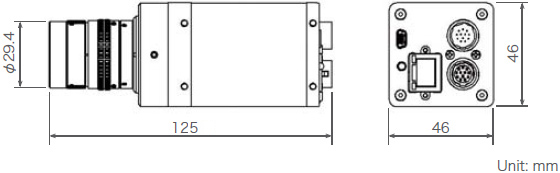

| External dimensions | 46mm x 46mm x 125mm （W x H x D） | |
| Weight | Approx. 314g | |
| AC adapter | Power source | AC 100V to 240V （50/60 Hz) |
| Rated output | 12V 2A | |
| Operationstemperature | 0℃ to 40℃ | |
| External dimensions | 43.8mm x 28.5mm x 95.9mm （W x H x D） | |
| Weight | Approx. 160g |
| Preview Display | － | |
|---|---|---|
| Color Measurement | － | |
| Color Measurement Results Display |
Pseudo-color Display | Displays colorimetric value in 65,536 gradations |
| Color Judgment Display | Displays within or beyond the specified color range through images, color specified in x and y (maximum of six decimal places) |
|
| Histogram | Displays the reading on the horizontal axis, and the frequency on the vertical axis (no. of intervals: 1000) |
|
| Chromaticity Diagram | Displays color measurement results on an xy chromaticity diagram | |
| Numerical Display | Displays color measurement results of each coordinate as numerical values (maximum of six decimal places) |
|
| Regional Information Display | Displays the average value and standard deviation of the reading of a specified range (maximum of six decimal places) |
|
| Colorimetric Results | Saved in CSV format | |
| OS | Windows® 7 Professional (32/64bit) Windows® 8 (32/64bit) |
|---|---|
| CPU | Intel® Core™ i5 2.8GHz or faster processor |
| Memory | 4GB or more |
| HDD | 1GB or more available disk space |
| LAN Port | 1 Gigabit Ethernet port |
| Display | 16.77 million colors (32 bit) with 1280 x 800 pixel resolution or higher |
